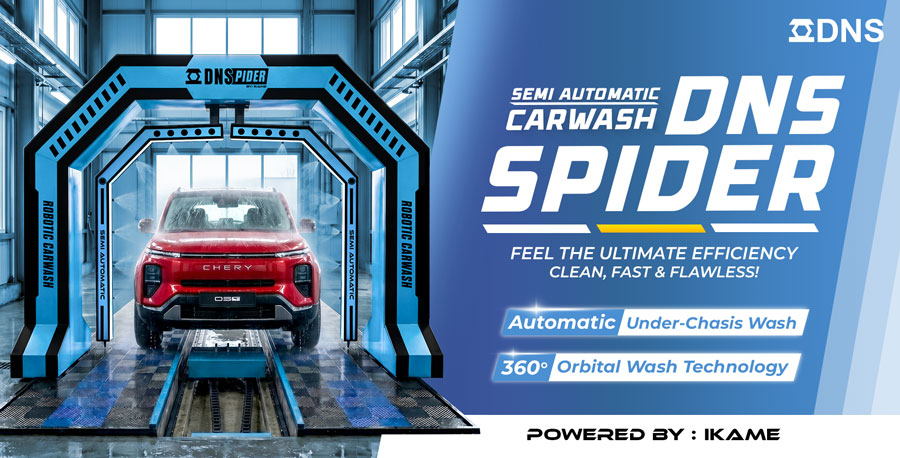

Mesin Cuci Mobil Semi Automatic DNSpider
Mesin cuci mobil dengan sistem otomatis dan manual, dilengkapi dengan panel kontrol yang memudahkan sistem pengoperasian mesin sehingga lebih aman dan praktis. Dengan fitur 360° Orbital Wash Technology yang membuat hasil cuci bersih sempurna.
| Spesifikasi Mesin | |
|---|---|
| Model | : DNS-Spider |
| All Dimension | : 3820 mm x 2880 mm x 400 mm |
| Inner Dimension | : 3040 mm x 2500 mm |
| Material | : Hollo Full HDG (Hot Dip Galvanized) |
| Frame Finishing | : Powder Coating |
| Cover | : ACP (Aluminium Composite Panel) PVDF |
| Process | : 5-step Semi Automatic Carwash |
| Power | : 13.400 watt 380 V / 50 Hz |
| Water Use | : 435 liter / car |
| Engine Speed | : 4 minutes / car |
| Wash Estimate | : ± 5 minutes / car |
| Wash Capacity | : ± 12 unit / hour |
| Water Noozle | : 14 |
| Shampo Noozle | : 8 |
| Rail | : 50 mm x 50 mm |
| Spesifikasi Under Chasis | |
|---|---|
| Dimension | : 800 mm x 500 mm x 250 mm |
| Rail | : 30 mm x 30 mm |
| Nozle | : 3 Pcs |
| Proses | QTY | Jumlah Proses | Total (Liter) | Waktu | Total Proses |
| Under Chasis | 81 Liter | 1 X | 81 Liter | 42 Detik | 42 Detik |
| Bilas Air | 177 Liter | 2 X | 354 Liter | 65 Detik | 130 Detik |
| Shampoo | 20 Liter | 1 X | 20 Liter | 65 Detik | 65 Detik |
| Shampoo | 20 Liter | 237 Detik | |||
| Air | 435 Liter | 3,95 Menit | |||
| Listrik | Qty | Total (Watt) | |
| Kompresor Udara | 2235 W | 1 | 2235 W |
| Pompa VMP 10-20 | 9300 W | 1 | 9300 W |
| Motor Penggerak | 373 W | 2 | 745 W |
| Motor Lengan | 745 W | 1 | 745 W |
| Total | 13025 W | ||
